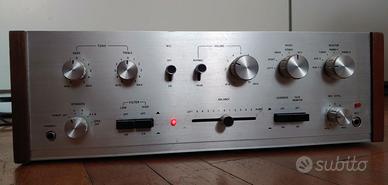

amplificatore Emerson EA-4000 Monacor SA-800

Descrizione

meraviglioso amplificatore amplifier italiano della fiorentina Emerson EA-4000 Monacor SA-800 potente con i suoi 40w su 8ohm e 50W su 4ohm a componenti discreti! Made in Japan Attacchi professionali a banana uscita pre e finale e tanto altro! Type: Integrated amplifier Years of manufacture: 1973 - 1977 Made in: Japan Color: Front black, wooden cabinet Remote control: - Power consumption: Dimensions (WxHxD): 410 x 135 x 300 mm. Weight: 10 kg Original price approx.: 560 DM Connections Number of inputs: Input sensitivity: Phono MM 1: 2.5 mV, switchable 50 kOhm, 100 kOhm. Phono MM 2: 2.5 mV, 50 kOhm Microphone: 2.2 mV, 22 kOhm Tuner: 150 mV, 50 kOhm AUX 1, 2: 150 mV, 50 kOhm Tape Play: 150 mV, 50 kOhm Main In: 500 mV, 50 kOhm Number of Outputs: Outputs: Tape Rec: 150 mV Pre Out: Mono Out: Headphones: Connectors for 2 pairs of speakers Technical Data Continuous power (at distortion factor) 8 Ohm: 2x 40 W 4 Ohm: 2x 50 W Dynamic power 8 Ohm: 150 W 4 Ohm: 180 W Total harmonic distortion: 0.4 Attenuation factor: Frequency response: 5 - 70,000 Hz, ± 1 dB Signal-to-noise ratio: Phono: 65 dB Microphone: 65 dB High level: 75 dB Tone control Bass: ± 14 dB at 100 Hz Treble: ± 12 dB at 10 kHz Loudness: yes, + 10 dB at 50 Hz, + 3 dB at 10 kHz High Filter: yes, - 10 dB at 10 kHz, 12 dB / octave Low Filter: yes, - 10 dB at 50 Hz, 12 dB / octave Muting: - 20 dB Special Features Pre- / power amplifier separable Mono channel output Mono / Stereo switch Microphone mixer
