Yupiteru MVT 7100 scanner 0 - 1650 Mhz AM FM SSB

Descrizione

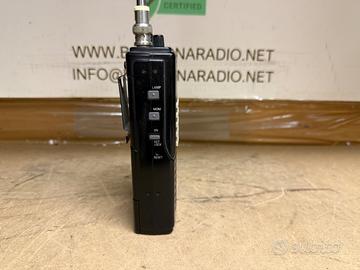

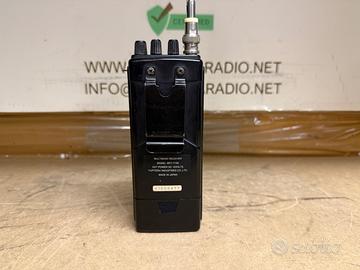

Ricevitore scanner Yupiteru MVT 7100 perfettamente funzionante GENERAL Type:HF/VHF/UHF receiver/scanner Frequency range:0.53-1650 MHz (Can tune down to 0.1 MHz) Tuning steps:50 / 100 Hz 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz Mode:AM / FM / WFM / SSB / CW Channels/memory management:1000 regular @ 30 ch/s 500 search pass 10 search band 1 priority Power supply:4.8-6 VDC (Four R6 / AA NiCd or alkaline batteries) or 12 VDC external Current drain/power consumption:10-140 mA Antenna impedance/connector:50 ohms / BNC Dimensions (W*H*D):64*155*38 mm (2.52*6.1*1.5") Weight:320 g (11.29 oz) Other features: RECEIVER SECTION Receiver system:? conversion superheterodyne 1st IF: ? MHz 2nd IF: ? KHz Sensitivity:AM (10 dB S/N) 0.53-2 MHz: 10 uV 2-30 MHz: 1.5 uV 30-1000 MHz: 0.5 uV FM (12 dB SINAD) 2-30 MHz: 1.5 uV 30-1000 MHz: 0.5 uV 1000-1300 MHz: 1 uV WFM (12 dB SINAD) 30-1000 MHz: 0.75 uV SSB/CW (10 dB S/N) 2-30 MHz: 1 uV 30-1000 MHz: 0.5 uV
