Descrizione

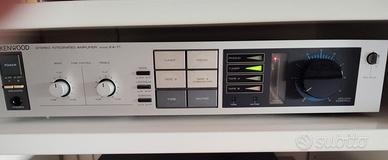

General Manufacturer: Kenwood Model: KA-71 Type: Integrated amplifier Years of manufacture: 1982 - 1984 Made in: Japan Color: Silver Remote control: No Power consumption: 440 W max. Dimensions: 440 x 109 x 249 mm (WxHxD) Weight: 7.5 kg Original price approx.: 750 DM Connections Number of inputs: 4 Phono MM (2.5 mV / 50 kOhm) Tuner, Tape A Play (150 mV / 30 kOhm), Tape B Play (150 mV / 30 kOhm). Number of outputs: Tape A Rec ((150 mV / 30 kOhm), Tape B Rec (150 mV / 30 kOhm). Number of speaker outputs: Group A: 2, Group B: 2 Technical Data Continuous power (at distortion factor) 8 Ohm: ? 4 Ohm: 2x 70 Watt (0.07%) Dynamic power 8 Ohm: ? 4 Ohm: 2x 150W Total harmonic distortion: Attenuation factor: 40dB Frequency response: 3 - 150.000 Hz Signal to noise ratio: Phono 73 dB / High level 80 dB Stereo channel separation: 83 dB Tone control: Bass: ± 10 dB / 100 Hz treble: ± 10 dB / 10 kHz Loudness: Yes High Filter: No Low Filter (Subsonic): yes Mute: yes Mono/Stereo: yes Direct/Line-Straight: yes Special Features LED display for each selected input, equalizer and mute
