Piastra JVC model DD-7E Semi-funzionante

Descrizione

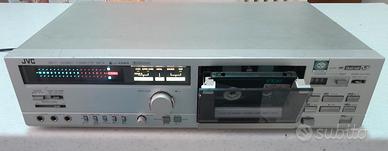

JVC stereo cassette deck model DD-7E non funzionante. Difetto se si preme play parte e dopo pochi secondi stacca, il resto funziona tutto, avanti, indietro , stop, pausa, ecc... Piastra di alta qualità vintage. Vendo come da riparare. Con formula visto e piaciuto. Spedizione o ritiro in loco Grosseto oppure Roma . Manufacturer: JVC Model: DD-7 Type: Stereo cassette deck Years of manufacture: 1981 - 1982 Made in: Japan Color: silver Remote control: 8 pin DIN type (R-50 E optional) Power consumption: 40 Watt Dimensions: 450 x 330 x 110 mm (WxDxH) Weight: 7 kg Original price approx.: 1'500 DM New price remote control R-50 E: 50 DM Connections Number of inputs: 2 Line In: 80 mV DIN In: 0.07 mV Microphone: 0.2 mV Number of outputs: Line Out: 500 mV DIN Out: Headphone (6.3mm jack): Specifications: Audio heads: 1x record, 1x playback, 1x erase head Motors: 1x coil DC motor), 1x Capstan (DD motor) Tape speed: 4.75 cm / s Synchronization fluctuation: 0,06 %. Tape types: Normal: Type I Cr02: Type II Metal: Type IV Frequency response: Normal Type I: 15 Hz - 19 kHz (DIN) Cr02 Type II: 15 Hz - 20 kHz (DIN) Metal Type IV: 15 Hz - 20 kHz (Metal band -20 VU Rec) Distortion factor: 1.0 % (THD), 0.4 % (K3) Signal-to-noise ratio: 75 dB (Dolby C) Crosstalk attenuation: 65 dB at 1 kHz Auto Reverse: no Dolby: B, C, ANRS MPX filter: yes ( switch at rear) Special Features: Quartz Direct Drive Rewind time: 85 s (C-60) ANRS and Super ANRS
