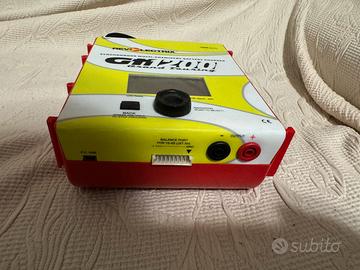

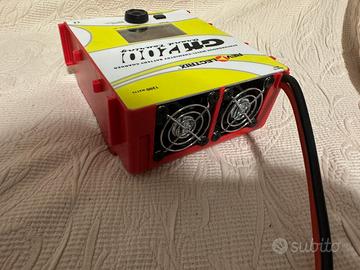

Caricabatterie Revolectrix GT1200 (1200W 40A)

Descrizione

Caricabatterie universale Revolectrix GT-1200 *A richiesta possibile completare con alimentatore. For Battery types: Lithium Polymer HV (1s to 8s balanced, 1s to 2s unbalanced), Lithium Polymer (1s to 8s balanced, 1s to 2s unbalanced) Lithium Ion (1s to 8s balanced, 1s to 2s unbalanced), Lithium Manganese (1s to 8s balanced, 1s to 2s unbalanced), A123 (LiFePO4) (1s to 8s balanced, 1s to 8s unbalanced), NiCd (1s to 21s), NiMH (1s to 21s), Lead Acid batteries (1s-12s Flooded, Gel, AGM, SLA) Pack capacity: 50 mAh to 360Ah Input voltage: 10-32VDC, reverse polarity protected Input current: 1A to 60A, software limited Power conversion: Synchronous DC/DC converter, 85% to 93% efficiency depending on output current Output battery charge current: Adjustable range 25mA to 40A, limited by 60A input current* Output battery discharge current: Internal discharge 25mA to 8A, 80W max, Regenerative discharge 25mA to 40A, 1200W max** Continuous max output power: 600W @ +12VDC input, 1200W @ +24VDC Cell balancing: 1s-8s Li or A123 (LiFePO4) balanced charging Voltage calibration: Cell voltage measurements are factory calibrated to a standard traceable to NIST; calibration is to +/- 6 mV Current calibration: Charge current is factory calibrated on a 4A standard; calibration is to +/- 1mA Measurement accuracy: Voltage resolution: 78uV (16 bit) Voltage tolerance: +/- 6mV Charge current: +/- 1% Capacity added to pack: +/- 1% Percent capacity (“Fuel”): +/- 5% (with accurate fuel table defined for battery being charged) Interface: USB 2.0 Full Speed (12Mb/s) Cooling fans: Twin, 13 CFM, 50mm diameter Heat sink: Internal 120W aluminum, thin finned Output battery connector: Modified JST XH series, 9 position max; accepts 1s-8s balance plugs on batteries LCD: 2.6", 128 x 64 pixels graphic LCD with white LED backlight Size: 5.82" x 6.55" x 3.57"
