Batterie celle lto

Descrizione

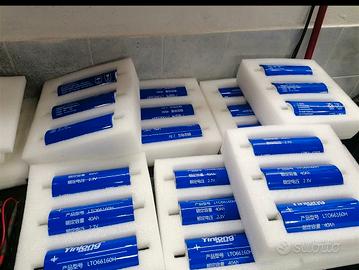

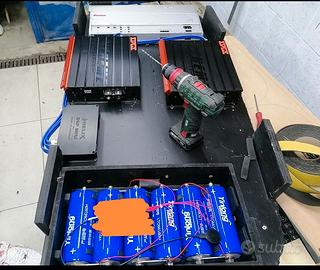

Celle lto altissima qualità , le celle sono da 40ah caduna, il pacco lto viene venduto assemblato o d'assemblare , completo di bms o senza bms , le celle già sono pronte per essere utilizzate.... Per info in privato Technical specification YL-LTO-40-AH Specifications Battery type Lithium Titanate Battery (LTO) Electrical data Nominal capacity 40Ah Nominal Voltage 2.3V Internal resistance 1mΩ Max. charging current 10 C (400A) Charging upper limit voltage 2.8V Max. discharge current 10 C (400Ah) Discharge cut-off voltage 1.5V Cycle lifetime 30,000 Operational requirements Operating ambient temperature -50°C ~ 65°C (Charging) -50°C ~ 65°C (Discharging) Storage ambient temperature -20°C ~ 45°C Short-term (within 1 month) -20°C ~ 20°C Long-term (within 1 year) Storage humidity <70% Mechanical data Weight 1.25 kg Cell construction type Cylyndrical Cell diameter 66 mm Cell height (excluding terminals) 160 mm Cell height (including terminals) 202 mm Shell material Aluminum
