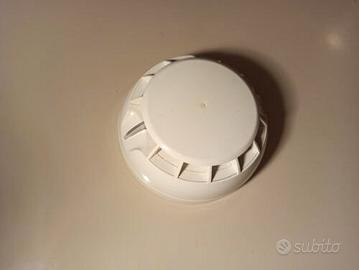

Smoke detector modello S30 sensore fumo filare all

Descrizione

Description* reperite dal web quindi puramente indicative Auto temperature compensation Digital process algorithm Low profile design LED indication with 360° visibility Sensor status indication on every 8 seconds EN54 - 7 certified Supply voltage U 9-30 VDC (Nom. 12/24 VDC) Alarm state current - base type B24 and B24D: 20mA/12-30V; - base type B24RD: 33mA/12V, 49mA/ 24V, 57mA/30V - base type B12: 18mA/9V, 29mA/12V, 32mA/15V Output in alarm state at terminal RI 20mA (max)/-3.3V Degree of protection IP 30 Operational temperature range -10 / +60°? Relative humidity resistance (93 ± 3) % at 40°? Dimensions (incl. base) diameter 102 mm, h 42 mm Weight (incl. base) 160 g
