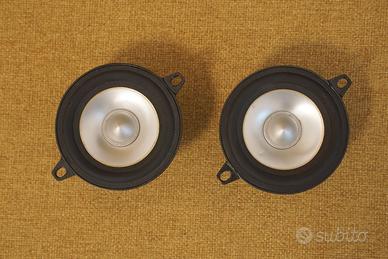

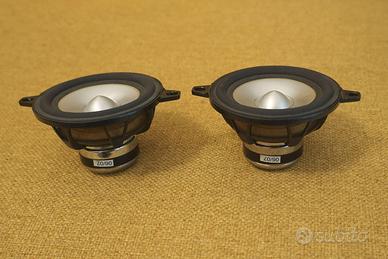

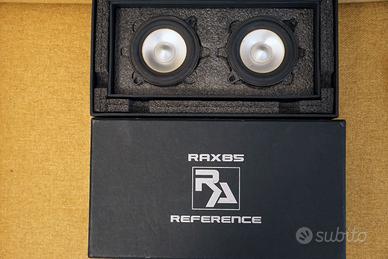

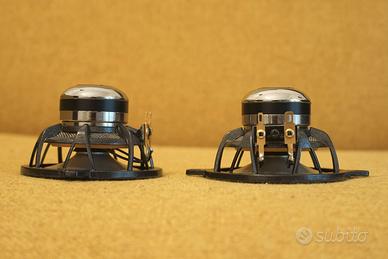

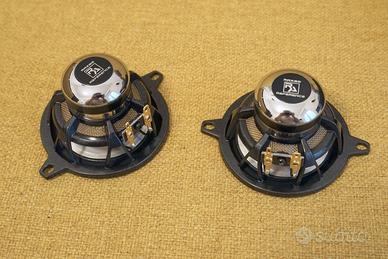

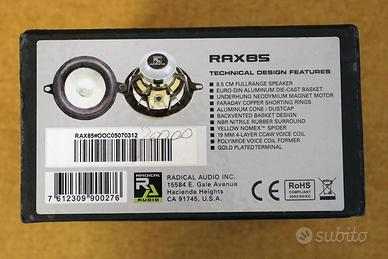

Altoparlanti Fullrange Rax85

Descrizione

Bellissimi full range 4 Ohm diametro 85mm Radical Audio (made in USA). Piccoli segni su una membrana, ma nuovi, mai montati. TECHNICAL SPECIFICATIONS SPEAKER MODEL RAX85 RAX100 Nominal Diameter 3 ½" (8.5cm) Nominal Impedance 4Ω Voice Coil Diameter 19mm Front Pole-Plate Height 8.5mm Voice Coil Winding Height 6mm Frequency Response (- 3dB) 100 Hz – 20kHz* Free Air Resonance Fs 98Hz Equivalent Air Volume Vas 1.1L DC Resistance Re 3.7Ω Electrical Q Qes 0.63 Mechanical Q Qms 3.1 Total Q Qts 0.52 Moving Mass Mms 5.3g Electrical Excursion Xmax 2.5mm p-p Force Factor B/L 4.4T/m Sound Pressure Level SPL 84.6dB/1W/1m Effective Cone Area Sd 40cm2 Continuous Power Handling Pe 50Wrms* Peak Power Handling 75W* MOUNTING DIMENSIONS Mounting Diameter 78mm Mounting Depth 50mm Mounting Holes 2 4 * Depending on highpass frequency, x-over slope steepness and – if applicable - enclosure volume RECOMMENDED X-OVER SETTINGS High Pass Crossover Frequency 90 - 150Hz
