Manufacturer:JVC

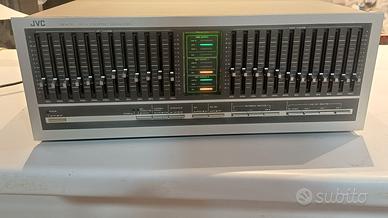

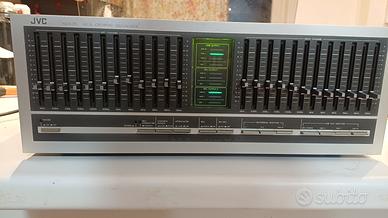

Model: SEA-70
Type: Equalizer
Years of manufacture: 1980 - 1983
Made in: Japan
Color: aluminum front, housing gray metallic
Power consumption:
Dimensions (WxHxD): 420 x 159 x 316 mm
Weight: 6 kg
Original price approx.: 848 DM

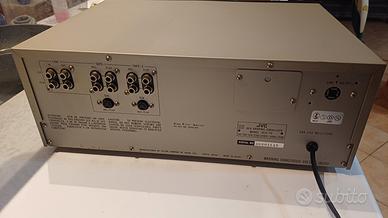

Connections
Number of inputs: 5
Line Cinch 1 Tape 1,2 Tape DIN 1,2
Number of outputs: 1
Line 2 V/max. 8 V
Technical Data
Frequency response: 10 to 100 kHz
Distortion factor: < 0,003%
Signalrauschabstand: >118 dB at 2 V output voltage
Crosstalk attenuation: 80 dB
Tone control with 12 sliders each L + R
Equalizer center frequencies:
16 Hz, 31.5 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz, 32 kHz,
control range ± 6 dB, ± 12 dB, switchable (1 or 2 dB steps)
