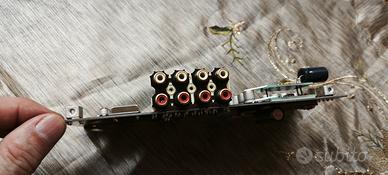

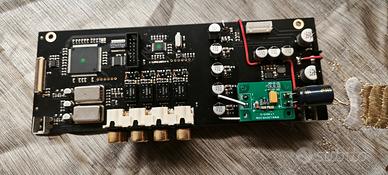

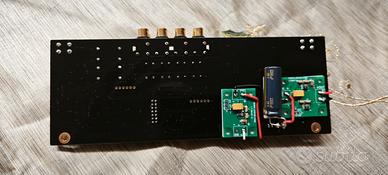

Scheda Vanity HD per Oppo 203

Descrizione

Vendo scheda Vanity HD , perfettamente funzionante , per Oppo 203 . Specifications : 8 channel S/PDIF Output 8 channel S/PDIF Output • protocol: S/PDIF (IEC958 / EIAJ CP1201) • type: re-clocked transformer isolated RCA coaxial • format: linear PCM stereo • supported sampling rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz • supported bit depths: 16 / 24bit S/PDIF Reclocking S/PDIF Reclocking • 2x custom low jitter onboard VCXO • digitally controlled frequency tuning, fc<1Hz • ultra low-noise power regulators for VCXO and TX circuits High Quality Direct Stream Digital to Linear PCM Conversion nversion • custom developed Zero Alias Linear Phase Filter • 37bit arithmetic / 47bit accumulator • output sample rates: 88.2kHz / 176.4kHz • DSD to LPCM filter characteristics individual for both output sample rates • full precision 4.0 DSD down-mix option User Configurable Functionality User Configurable Functionality • DSD to LPCM output sampling rate: 88.2kHz / 176.4kHz • output bit depth settings: 16 / 24bit • dedicated DSD 4.0 down-mix enable / disable • 4 user selectable DSD to LPCM filter characteristics #1 / #2 / #3 / #4 • data jitter reduction: OFF/stage 1-3 Vendo per cambio progetto . Prezzo richiesto 450 euro . Possibile la spedizione con servizio Tutto Subito .
