Descrizione
Frame and more
Brand:
Haibike
Telaio:
Haibike Alluminio, 27.5"
Frame shape:
Low
Model name:
TREKKING 4
Peso totale consentito:
130
Frame height:
38
Forcella:
SR Suntour SF21-XCM-ATB 100 mm
Dinamo:
Attraverso il sistema a batteria
Parafango:
Curana Apollo 70, extra matte black
Fanale:
Herrmans CL3 E, 6-12V
Serie sterzo:
Feimin High Version: FP-H858U + ACROS BLockLock ZS56 (S-L) / FP-H856 ZS44/ZS56 (XL+XXL)
Fanale posteriore:
AXA Juno E-Bike, 6-12V
Cavalletto:
XLC Ursus Mooi 18
Propulsion
Motore:
Yamaha PW-S2, 250W, 25km/h, 75Nm
Caricabatterie:
Yamaha Standard Charger 4A
Batteria:
Yamaha InTube 720Wh
Battery capacity:
720
Display:
Yamaha A2 Display
Engine manufacturer:
Yamaha
Engine torque:
75
Gear shift and brakes
Cambio:
Shimano CUES RD-U6000 10/11s, Shadow+, 10 velocità, Cues U6000, Comando Trigger
Pacco pignoni :
Shimano CUES CS-LG300-10, HG, 11-48T
Catena:
Shimano CN-LG500 9-11s, Linkglide
Brakes:
Shimano BR-MT200, 2 pistons, resin pad, 180 mm
Leva del freno:
Shimano BL-MT201
Derailleur hanger:
Glory Wheel UDH
Crank arm:
Miranda Kies ISIS Crankarm 170 mm
Wheels and wheel components
Copertone:
Continental Ruban Reflex, 58-584
Cerchio:
Schürmann Yak25 32H with Single Eyelets, Con occhielli, Cerchio a camera vuota
Wheelhub:
Shimano HB-MT200 QRx100 mm, 32H, Centerlock, Shimano FH-TC500-HM-B 12x148 mm, Centerlock
Handlebar and saddle
Sella:
Selle Royal Essenza+
Reggisella:
JD SP20T.1A Dia. 34.9 mm, L: 400 mm
Manubrio:
JD MTB502A Dia. 31.8 mm, Rise: 25 mm, 720 mm
Manopole:
Ghost
Attacco manubrio:
XLC JD-ST99A, Dia. 31.8 mm, L: 80 mm, Adjustable
Geometry
Seat tube length:
380
Seat tube angle:
73
Head tube length:
150
Head tube angle:
69
Chain stay length:
475
Bottom bracket drop:
-65
Reach:
409

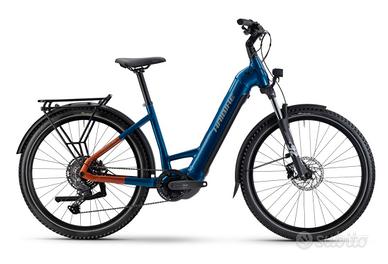

* The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike is not reduced, to replace individual parts with componen
