Inverter ibrido, fotovoltaico 10,2 Kw 48v, nuovo

Descrizione

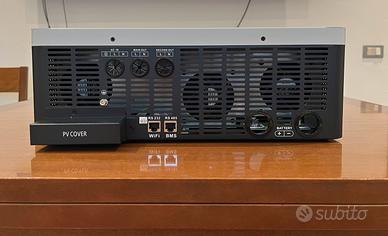

Vendesi nuovo, mai usato in scatola originale inverter fotovoltaico ibrido 10,2kw, 48 V, 220V, Wifi (modem incluso), BMS. 2 MPPT Utilizzabile sia on-drid che off-drid. PV INPUT: Nominal operating voltage: 360Vdc Vmax PV: 500Vdc PV input voltage range: 90-450Vdc Imax PV/Channels: 18.0A/2Channels Full load MPPT range: 360- 450Vdc Maximum PV Input Power: 5400W+ 5400W Maximum Solar Charging Current: 160A GRIDIAC OUTPUT: Nominal Output Voltage :220/230/240 Vac Feed-in Grid Voltage Range: 195~253 Vac Feed-in Grid Frequency Range: 50+1Hz Nominal Output Current 44 3A Power Factor Range >0.99 Maximum Conversion Efficiency(DC/AC) 98% Nominal Operating Frequency 50/60Hz TWO LOAD OUTPUT POWER: Full Load: 10200W Maximum Main Load: 10200W Maximum Second Load: 3400W Main Load Cut Off Voltage:52VDC Main Load Return Voltage:54VDC AC INPUT: Nominal operating voltage: 230Vac Maximum input current: 50A Nominal operating frequency: 50/60Hz Surge power:20400VA Maximum AC Charging Current: 140A BATTERY: Battery voltage : 48VDC Maximum battery current:212.5A
