Kingston Hyper X kit KHX8500D2K2/1GN 1GB

Descrizione

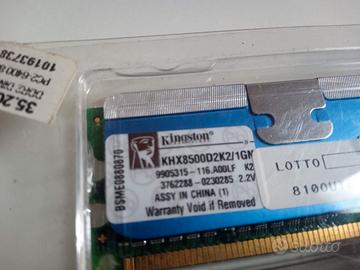

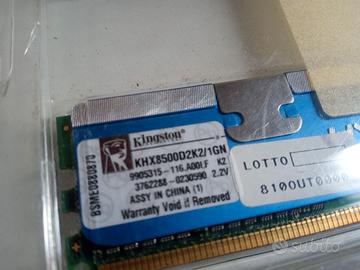

Kingston Hyper X kit KHX8500D2K2/1GN 1GB (512MB 64M x 64-Bit x 2 pcs.) In questa inserzione propongo un kit di due memorie Kingston, usate e funzionanti, seguono dettagli modello. Condizioni come da foto, viste e piaciute. KHX8500D2K2/1GN1GB (512MB 64M x 64-Bit x 2 pcs.)PC2-8500 CL5 240-Pin DIMM KitPage 1TECHNOLOGYKeyedDESCRIPTION:Kingston's KHX8500D2K2/1GN is a kit of two 64M x 64-bit (512MB) DDR2-1066 CL5 SDRAM (Synchronous DRAM) "NVIDIA SLI-Ready" memory modules, based on eight 64M x 8-bit DDR2 FBGA components per module. Total kit capacity is 1GB (1024MB). Each module pair has been tested to run at DDR2- 1066MHz at a latency timing of 5-5-5-15 at 2.2V. The SPD is programmed to JEDEC standard latency 800Mhz timing of 5-5-5-18 at 1.8V. Each 240-pin DIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:FEATURES:Power supply : Vdd: 1.8V ± 0.1V, Vddq: 1.8V ± 0.1V Double-data-rate architecture; two data transfers per clock cycle Bidirectional data strobe(DQS) Differential clock inputs(CK and CK) DLL aligns DQ and DQS transition with CK transition Programmable Read latency 5 (clock) Burst Length: 4, 8 (Interleave
