Descrizione
usata, perfettamente funzionante

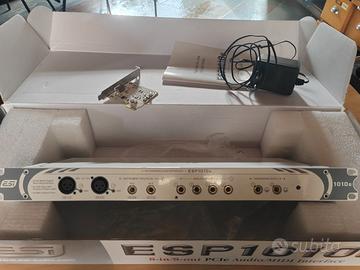

SCHEDA AUDIO PCIe 8 in 8 out
ESP 1010e is the perfect audio gear for multi channel recording applications in your home studio and for home entertainment. The upgraded version of our famous ESP1010 is now a PCIe (PCI Express) solution, integrating the latest interface standard for extremly fast and reliable data transfer, more reliable and stable than comparable FireWire or USB 2.0 interface solutions. The hardware is equipped with 24-bit converters on up to 8 analog inputs, up to 8 analog outputs. Two input connectors are equipped with microphone preamps with balanced XLR connectors and switchable phantom power supply that can be used with high quality dynamic and condenser microphones, in addition two Hi-Z inputs are provided to directly connect and use guitar input signals. ESP1010e also provides a 24-bit 96kHz coaxial digital input and output, a 32 channel MIDI I/O interface with 2 inputs and 2 outputs and full EWDM driver with DirectWIRE functionality. All this makes ESP1010e a perfect multi channel recording solution for all the latest audio applications including Cubase, Nuendo, Cakewalk, Sonar, Logic Audio,Cool Edit, Vegas, etc. - the system is simple to install and simple to use and is a great choice for you to build a home studio around. Last but not least, it is very affordable. ESP1010e is bundled with Cubase LE 4 from Steinberg.
Caratteristiche
PCIe card with external 19" interface
up to 8 analog inputs, 2 with microphone preamps, 2 Hi-Z equipped inputs, 24bit/96kHz/107dB(a)
switchable +48V phantom power support, with external power supply (recommended, not included, optional)
up to 8 analog outputs, 24bit/96kHz/112dB(a)
coaxial S/PDIF in and outputs
PCIe card, compatible with low-profile systems
2 headphone outputs
2 MIDI inputs, 2 MIDI outputs
~ 2m connection cable between 19" box and PCIe card
support for DirectWIRE 3.0
EWDM driver: MME, DirectSound, ASIO 2.0 support
Windows 7/Vista/XP/2000/2003 compatible
