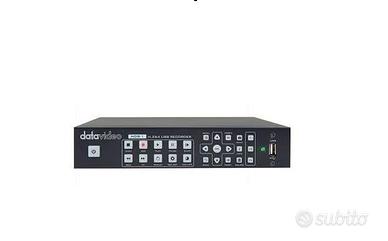

DataVideo – HDR-1 – Registratore video H.264 usb

Descrizione

Model Name HDR-1 Product Name H.264 USB Recorder Video Inputs 1x HDMI Type A Video Outputs 1x HDMI Type A DC IN DC Jack Storage 1x USB Port (Female type A, USB 2.0 compliant) Control RS-232 GPI (Pulse trigger: Record Start/Stop) Operating Temperature 0°C to 50°C (32°F to 122°F) Humidity 10% to 80% Power Consumption 12V / 4.8W Dimension (mm) 220 x 232 x 42 Weight 1.35 Kg Coding spec Container MP4 H.264 + AAC Profile Main/High Profile 480i60 Main profile Level 4.1, 480p60 Main profile Level 4.1 576i50 Main profile Level 4.1, 576p50 Main profile Level 4.1 720p50 Main profile Level 5.0, 720p60 Main profile Level 5.0 1080i50 High profile Level 4.1, 1080i60 High profile Level 4.1 1080p50 High profile Level 5.0, 1080p60 High profile Level 5.0 Video Coding H.264 4:2:0 HD: 1080P 20Mbps/18Mbps/15Mbps HD: 720P 20Mbps/15Mbps.10Mbps HD: 1080i 15Mbps/12Mbps/10Mbps SD: 576P/480P/576i/480i 7.5Mbps/5Mbps/3Mbps Audio Coding AAC Stereo 16bit 48KHz 128Kbps Other 3D structures supported Top-and-bottom, Side-by-side Half USB Storage Device Condition File System NTFS Video and Audio Display / Record Mode： Storage Speed Minimum write speed > USB 3.0, 45 MB/s Features Recording Function Record, Play/Pause, FF, REW, Previous Clip, Next Clip, Recall Slow Motion Pass through Recording Mode Record Format Playback Mode Video Audio Real Time Mode Standard Mode Audio Video 1080P@24 Auto: PCM 2Ch Manually: RAW 5.1 Ch Dolby Digital & DTS X X PCM 2Ch X X 1080P@50 1080P@50 1080i@50 1080P@25 1080i@50 1080P@60 1080P@60 1080i@60 1080P@30 1080i@60 1080i@50 1080i@50 1080i@50 1080i@50 1080i@50 1080i@60 1080i@60 1080i@60 1080i@60 1080i@60 720P@50 720P@50 720P@50 720P@50 720P@50 720P@60 720P@60 720P@60 720P@60 720P@60 576P 576P 576P 576P 576P 480P 480P 480P 480P 480P 576i 576i 576i 576i 576i 480i 480i 480i 480i 480i
