Descrizione

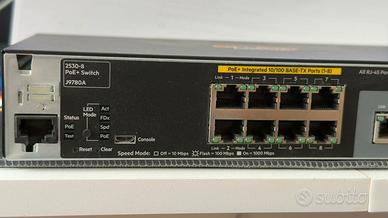

HP - J9780A - HP 2530-8-PoE+ Switch
Highlights
Numero di porte:8
Velocità della porta:1G
Tipo di porta:Rame
Uplink Ports (fixed):2x 1G SFP/RJ45 Kombi
Layer Type:Layer 2
POE Porti:POE+
General
Device Type:Switch - 8 ports - Managed
Enclosure Type:Desktop, rack-mountable, wall-mountable 1U
Subtype:Fast Ethernet
Ports:8 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE):PoE+
Performance:Throughput: 4.1 Mpps
Switching capacity: 5.6 Gbps
Capacity:MAC addresses: 16000
MAC Address Table Size:16000 entries
Jumbo Frame Support:9220 bytes
Remote Management Protocol:SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Encryption Algorithm:SSL
Authentication Method:RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features:Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, MSTP support, ACL support, QoS, STP Root Guard, LLDP support, CoS, GARP
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor:1 x ARM: 800 MHz
RAM:256 MB DDR3 SDRAM
Flash Memory:128 MB
Expansion / Connectivity

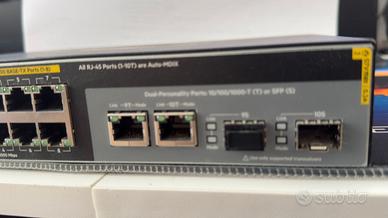

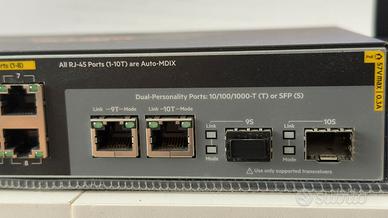

Interfaces:2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x SFP (mini-GBIC)
1 x management RJ-45

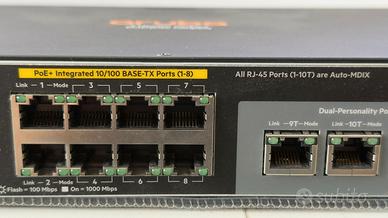

8 x 10Base-T/100Base-TX - RJ-45 PoE+
Power
Voltage Required:AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards:FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1
Dimensions & Weight
Width:25.4 cm
Depth:15.95
NON TRATTABILE
