Descrizione

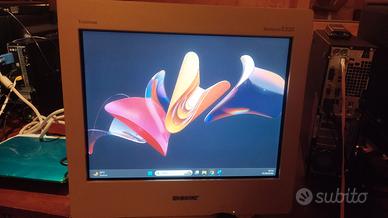

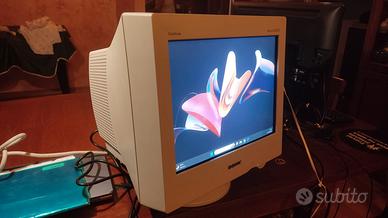

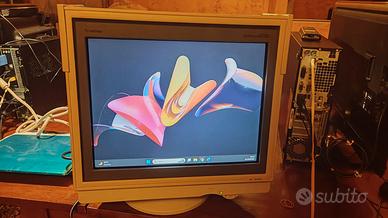

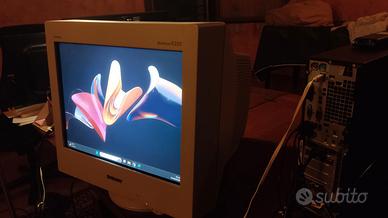

Causa inutilizzo, vendo Monitor Sony Trinitron Multiscan CPD-E220E. SPECIFICATIONS CRT 0.24 mm aperture grille pitch (center) 17 inches measured diagonally 90-degree deflection FD Trinitron Viewable image size Approx. 327 × 243 mm (w/h) (14 3/4 × 9 5/8 inches) 16.0" viewing image Resolution Maximum Horizontal: 1600 dots (E220/E220E) Vertical: 1200 lines (E220/E220E) Recommended Horizontal: 1024 dots Vertical: 768 lines Standard image area Approx. 312 × 234 mm (w/h) (12 3/8 × 9 1/4 inches) Deflection frequency* Horizontal: 30 to 85 kHz (E220/E220E) Vertical: 48 to 120 Hz AC input voltage/current 220 to 240 V, 50/60 Hz, 0.9 A Power consumption 120 W Dimensions Approx. 404 × 413.5 × 419.5 mm (w/h/ d) (16 × 16 3/8 × 16 5/8 inches) Mass Approx. 20 kg (44 lb 1 oz) Plug and Play DDC1/DDC2B/DDC2Bi * Recommended horizontal and vertical timing condition • Horizontal sync width should be more than 1.0 μsec. • Horizontal blanking width should be more than 3.0 μsec. • Vertical blanking width should be more than 500 μsec. Design and specifications are subject to change without notice. 1280 dots (E215E) 1024 lines (E215E) 30 to 70 kHz (E215E) [CPD-E220] Equator Model S. Hemisphere Model N. Hemisphere Model Chassis No. SCC-L35B-A [CPD-E215E] AEP Model Chassis No. SCC-L35D-A [CPD-E220E] AEP Model Chassis No. SCC-L35C-A TRINITRON® COLOR COMPUTER DISPLAY TIMING SPECIFICATION PRIMARY MODE MODE AT PRODUCTION MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6 MODE 7 MODE 8 RESOLUTION 640 X 480 800 X 600 832 X 624 1024 X 768 1024 X 768 720 X 400 640 X 480 1280 X 1024 CLOCK 25.175 MHz 56.250 MHz 57.283 MHz 78.750 MHz 94.500 MHz 28.322 MHz 36.000 MHz 135.000 MHz — HORIZONTAL — H-FREQ 31.469 kHz 53.674 kHz 49.725 kHz 60.024 kHz 68.677 kHz 31.469 kHz 43.269 kHz 79.976 kHz usec usec usec usec usec usec usec usec H. TOTAL 31.778 18.631 20.111 16.660 14.561 31.777 23.111 12.504 H. BLK 6.356 4.409 5.586 3.657 3.725 6.355 5.333 3.022 H. FP 0.636 0.569 0.559 0.203 0.508 0.636 1.556 0.119 H. SYNC 3.813 1.1
