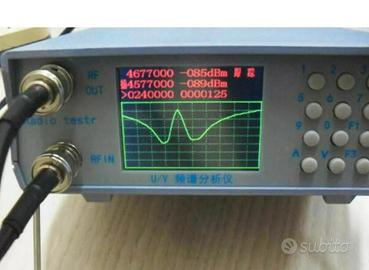

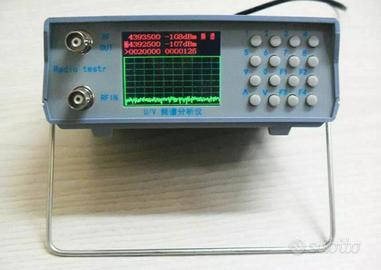

Analizzatore Di Spettro Portatile Alimentazione 8-13V 1A DC.
Equipaggiato con Tracking sull'intera gamma con il quale è possibile tarare filtri RF e duplexers.
Utilissimo per la ricerca di segnali interferenti grazie all'alimentazione a batteria.
Prodotto nuovo inusato, già in Italia, senza dazio e dogana.
Spedizione con corriere tracciato 24h
Caratteristiche tecniche:
- Range di frequenza
136-173MHz 400-470MHz
- Dinamica di spettro:
-127dBm --- 0dBm
- Risoluzione: 1dB
- Livello di uscita del generatore
tracking: ≈ -38 dBm
- connettori in/out: BNC 50 Ohm
User specs:
- The upper right corner of the spectrum shows the spectrum mode,the display tracking for the spectrum plus tracking mode
- The first line shows the center frequency center frequency power
- The second line captures the strongest or weakest frequency, or the specified frequency and power (shows the capture of the strongest signal in capture mode, the acquisition of the weakest signal in capture plus capture mode, Adjust the duplexer steps ") frequency and power)
- The third line of the frequency range (center frequency plus or minus) frequency step.
F1: cursor movement center frequency, frequency range,step cycle selection (long press to switch between spectrum and tracking mode)
F2: Backspace
The cursor points to the center frequency: Numeric keys direct input or up and down keys to step to adjust the frequency
F3 F4 Adjust the frequency in 1M
The cursor points to the frequency range: the value is centered on the center frequency plus or minus the range,for example: 0128000 as the center plus or minus 12.8 M
That is 25.6M range
Enter the number keys directly up and down keys to increase or decrease the range.
Enter the number keys directly up and down keys to increase or decrease the range,
The cursor points to the step: the number keys directly input or the up and down keys to adjust the step change in 5K scan range will be slightly changed to fit the size of the grid
Dati Principali
Tipologia telefoniFissi, Cordless e Altro
CondizioneNuovo - mai usato in confezione originale
