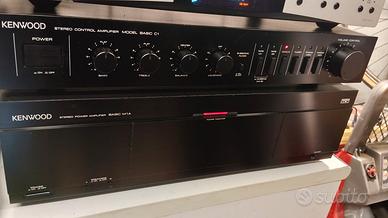

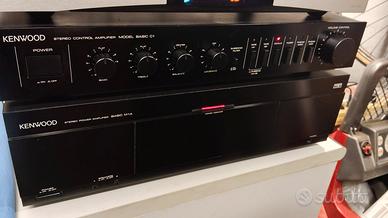

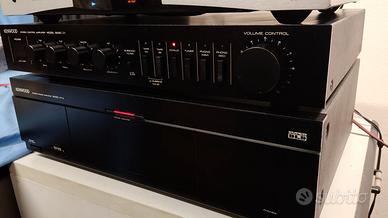

AMPLIFICATORE KENWOOD PRE C1 FINALE M1

Descrizione

Oggetti in condizioni perfette. Periodo d'oro Kenwood in pieno boom hifi. Manufacturer: Kenwood Model: Basic C 1 Type: Preamplifier Years of manufacture: 1983 - 1990 Made in: Japan Color: Black(black anodized) Remote control: No Power consumption: 17 W Dimensions: 440 x 78 x 326 mm WxHxD Weight: 4.2 kg Original price approx.: 498 DM Connections Number of inputs: Phono MC: 0,25mV,100Ohm Phono MM: 2,5mV, 47kOhm CD/Tuner/Aux/Tape: 150mV, 47kOhm Number of outputs: Tape Rec Out A/B Pre Out: 1V Specifications Frequency Response: CD/Tuner/Aux/Tape: 1Hz-350kHz. Phono: 20Hz-20kHz Distortion factor: CD/Tuner/Aux/Tape: 0.004% Phono: 0.005% Signal-to-noise ratio: Phono MC/MM: 70/87dB CD/Tuner/Aux/Tape: 108dB Stereo channel separation: Tone control Bass: ± 10 dB Treble: ± 10 dB Loudness: 0 to + 9 dB continuously adjustable High Filter: + 10 dB at 10 kHz Low Filter (Subsonic): 18Hz, 6dB/Oct Mute: Manufacturer: Kenwood Model: Basic M 1 Type: Power amplifier Years of manufacture: 1983 - 1987 Made in: Japan Color: Black (anodized aluminum) Remote control: No Power consumption: 700 W max. Dimensions: 440 x 112 x 324 mm (WxHxD) Weight: 9.1 kg Original price approx.: 698 DM Connections Number of inputs: Main In: 1V/47kOhm Number of outputs: Speaker: A/B Sigma Drive connections (only speaker pair A) no Sigma Drive when using both speaker pairs Speaker impedance 4 - 16 Ohm Technical Data Continuous power (at distortion factor) 8 Ohm: 2 x 105 Watt (20 Hz - 20 kHz @ 0,004%) 4 Ohm: 2 x 150 Watt (63 Hz - 12,5 kHz @ 0,7%) Dynamic power 8 Ohm: 2 x 170 Watt (1 kHz) 4 Ohm: 2 x 210 Watt (1 kHz) Total harmonic distortion: 0.003% Attenuation factor: 1,000 (100 Hz) with Sigma Drive Frequency response: 1 Hz - 300 kHz (-3dB) Signal-to-noise ratio: 120 dB Special Features Super DLD (Dynamic Linear Drive). HiFi power amplifier built in completely discrete analogue circuitry with impressive sound quality, stable load behaviour at impedances up to 1 Ohm!
