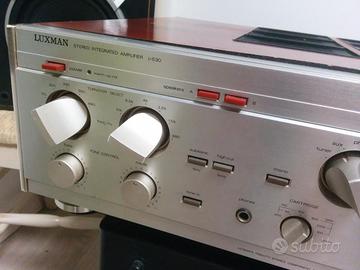

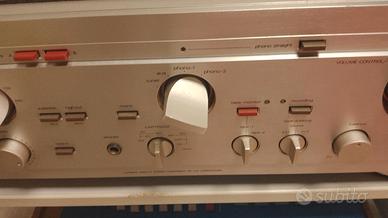

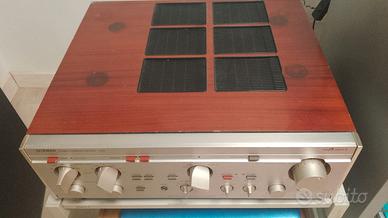

Amplificatore Luxman L530

Descrizione

vendo AMPLIFICATORE LUXMAN L530 Dual Mono in ottime condizioni estetiche, da revisionare e pertanto viene venduto come NON FUNZIONANTE. Molto ricercato per il suono straordinario e pulito. 120w di cui primi 15w in Pura Classe A LUXMAN L-530 Integrated amplifier Effective output (both channel operation) Class-A area: 15W+15W (8ohms) AB class maxima: 120W+120W (8ohms) THD: 0.007% or less (8 ohms, both channel operation, 15W) Input sensitivity Phono MM: 2 mV Phono MC: 125 microvolts Tuner, AUX, Monitor, Main In: 340 mV Input impedance Phono man month: 100 kohm, 50 kohm, 100 ohms Phono MC: 300 ohms, 100ohm, 40ohm Tuner, AUX, Monitor: 40kohm Main In: 47kohm SN ratio (IHF-A) Phono MM: 84 dB Phono MC: 70 dB (250-microvolt input) Tuner, AUX, Monitor, Main In: 110 dB Frequency characteristic: 10 Hz - 100 kHz one 1 dB Tone control Low-pass turnover: 77 Hz, 120 Hz, 200 Hz, 330 Hz, 550 Hz, 880 Hz High region turnover: 880 Hz, 1.5 kHz, 2.5 kHz, 4 kHz, 6.5 kHz, 10 kHz The maximum variation: ±8 dB Tapes monitor: Two lines (Tape1, 2) Tapes dubbing: Two lines (1->2, 2->1) Light filter: Subsonic speed: 15 Hz; A high cut: 9 kHz Power consumption: 380 W Dimensions: 453 x 161 x 444 mm (W x H x D) Weight: 18.0 kg
