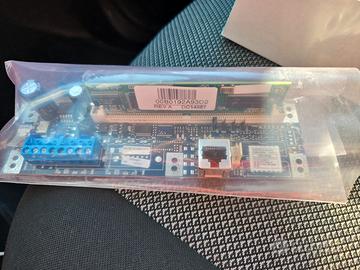

Aritech ATS 1809 Modulo IP

Descrizione

Modulo interfaccia IP per centrali ARITECH. NUOVO, MAI USATO, IN SCATOLA, OGGETTO INTROVABILE! ATS1809 IP Interface The Universal Interface ATS1809 gives the Advisor MASTER product family a Web and Ethernet based control and connectivity via the Internet Protocol. With the ATS1809 you will have the full benefit of alarm reporting over IP, using SIA, XSIA or CID. As a standard solution the Osborn Hoffmann front-end receiver will be able to receive the reporting format and protocol. Depending on the central station, individual solutions can be created to configure the receiving environment. Specifications Software Description Configuration CID/SIA Software upgrade paths Upgradeable software obtainable from GE Security. Reporting options GE Security Network Receiver CID/SIA Reporting backup PSTN dialler, ISDN or GSM backup Encryption 128-Bit Twofish data encryption (with management software) Triple DES encryption (with OH-Network Receiver.) Typical TCP packet sizes Traffic type /Direction Total bytes Poll /Software > panel 85 Ack, no data/Software < panel 85 Ack, COS event/Software < panel99 Ack, SIA/CID event/Software < panel 107 Network primitive frame size Ethernet frame 64-1522 IP Frame 20 + data TCP Frame 20 + data UDP Frame 8 + data Hardware Power supply 12 V DC direct from auxiliary power from ATS panel or from DGP or other 12 V DC Backup power Battery supply via ATS Panel Current consumption 80mA Onboard status indicators LED indicators for: Power Ethernet link and activity RS232 data transmit and receive Data connection From panel to Universal Interface: RS232 port connection from Universal interface to Port 1 connection on computer interface board if installed 100 Mbit RJ45 Ethernet interface Board size ATS BB Size Data reset and refresh functions CPU reset via jumper (J2). CPU reset via browser (Reboot CPU). Data reset to factory defaults via jumper (J8) Restart Communications via browser
