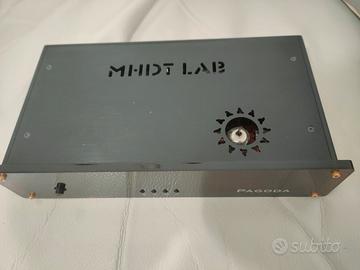

vendo DAC MHDT PAGODA VALVOLARE NON OVERSAMPLING , PCM 1704.
PagodaDAC is a non over-sampling, no digital filter, no op-amp, no feedback structured DAC.This tends to produce most realistic and natural sound.
PagodaDAC is capable of up to 24bits/192kHz digital signal inputs yet remains driving legendary PCM1704 R-2R digital to analog output.
The USB input section is in asynchronous operation.

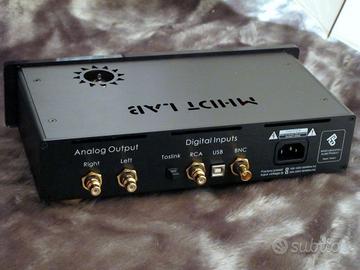

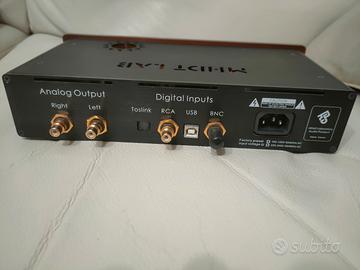

Total four independent digital inputs; BNC, USB, RCA and Toslink.

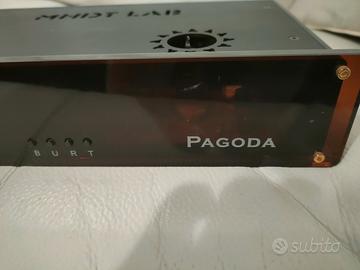

The 4 digital inputs are independent to each other, only one among them will be active and is controlled by the tact switches located in front panel.
Tube buffered output, tube in stalled is 5670 tube.
Tubes can be used: 5670, 2C51, 396A, 6385, 6CC42, 6854, 6N3,
6854, CV2575, CV4013, CV5894, CV8247, CV2381

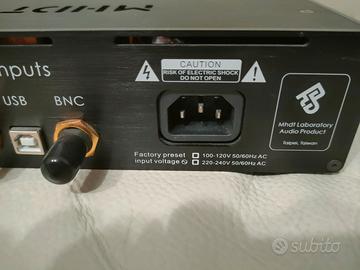

115/230V power supply selectable from internal PCB jump pins setting
Available in black cabinet only
Specifications:
Digital Receiver CS8416
D/A converter PCM1704 (standard no grade)
Frequency response: 20 Hz to 20 kHz (± 1dB)
Output impedance: 32 ohms
Output level: 3 Vrms
All inputs support 16/24 bits/ 32 kHz up to 192 kHz
Dimensions clear (W x D X H) 276 x 150 x 60 mm
Dimensions w/ socket (W x D X H) 295 x 170 x 60 mm
Weight 2 kg
