Descrizione

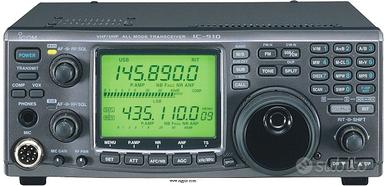

SPECIFICATIONS GENERAL Type:Amateur VHF/UHF transceiver Frequency range:Europe and Korea TX: 144-146 / 430-440 MHz RX: 136-174 / 420-480 MHz USA and Australia TX: 144-148 / 430-450 MHz RX: 136-174 / 420-480 MHz 23 cm (With UX-910 option) TX: 1240-1300 MHz RX: 1240-1320 MHz (The wide RX frequency range may require modification on some markets) Tuning steps:FM: 100 Hz, 5 / 6.25 / 10 / 12.5 / 20 / 25 / 100 KHz SSB/CW: 1 / 10 / 50 / 100 Hz Frequency stability:Better than ±3 ppm (±0.5 ppm with optional CR-293) Mode:FM / FM-N / SSB / CW Channels / memory management:99 regular per band 6 scan edges per band 1 call per band 10 satellite memories Non-volatile EEPROM storage Repeater shift / offset:±0-10 MHz (2 m/70 cm) ±0-100 MHz (23 cm, with UX-910 option) Power supply:13.8 VDC ±15% Current drain / power consumption:RX: Max 3.5 A (with UX-910) TX: Max 23 A Antenna impedance / connector:50 ohm / One SO-239 + one N-jack (Plus another N-jack on the UX-910 option) Dimensions (W*H*D):241*94*239 mm (9.49*3.7*9.41") Weight:4.5 Kg (9.92 lb), without UX-910 Other features:CTCSS/PL. Dual 9K6 packet ports and built-in keyer. Twin RX RECEIVER SECTION Receiver system:Single- double- or triple conversion superheterodyne, depending on band and mode IF matrix Sensitivity:FM: <0.18 uV (12 dB SINAD) SSB/CW: <0.11 uV (10 dB S/N) Selectivity:FM 15 KHz (-6 dB) 30 KHz (-60 dB) FM-N 6 KHz (-6 dB) 18 KHz (-60 dB) SSB/CW 2.3 KHz (-6 dB) 4.2 KHz (-60 dB) CW-N 500 Hz (-6 KHz) 1.34 KHz (-60 dB) Image rejection:2m/70cm: >60 dB 23cm: >50 dB AF output power / speaker:2 W at 10% distortion / 8 ohm External speaker connector:3.5 mm, 8 ohm TRANSMITTER SECTION RF output power: Pwr 2 m:5-100 W 70 cm:5-75 W 23 cm:1-10 W(With UX-910 option) Modulation system:FM: Variable reactance modulation SSB: Balanced modulation Max FM deviation (Factory set):FM: ±5 KHz FM-N: ±2.5 KHz Spurious emissions:2 m/70 cm: Better than -60 dB 23 cm: Better than -50 dB (with UX-910 option) Micro
