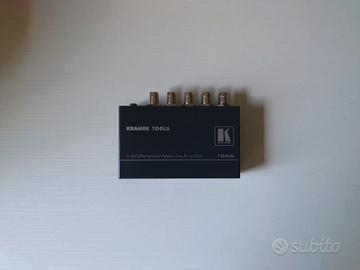

KRAMER TOOLS 1:4 Differential Video Line Amplifier

Descrizione

KRAMER TOOLS 1:4 Differential Video Line Amplifier 104LN SDI 1Vpp 75Ω BNC MADE IN ISRAEL Ottime condizioni, senza alimentatore 104LN 1:4 Composite Video Differential Line Amplifier The 104LN is a high-performance line amplifier for composite or SDI video signals. It includes differential circuitry to help eliminate noise often found on the input cable in a long run. FEATURES The 104LN is a high-performance line amplifier for composite or SDI video signals. It includes differential circuitry to help eliminate noise often found on the input cable in a long run. High Bandwidth - 423MHz (−3dB). Differential Circuitry - Reduces noise & hum found in long cable runs. Level (Gain) and EQ (Peaking) Controls. Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter. TECHNICAL SPECIFICATIONS INPUT: OUTPUTS: MAX. OUTPUT LEVEL: BANDWIDTH (-3DB): DIFF. GAIN: DIFF. PHASE: K-FACTOR: S/N RATIO: CONTROL: COUPLING: POWER CONSUMPTION: INCLUDED ACCESSORIES: OPTIONS: PRODUCT DIMENSIONS: PRODUCT WEIGHT: SHIPPING DIMENSIONS: SHIPPING WEIGHT: 1 composite/SDI video, differential, 1Vpp/75Ω on a BNC connector. 4 composite/SDI video, 1Vpp/75Ω on BNC connectors. 1.6Vpp. 423MHz. 0.22%. 0.1Deg. <0.05%. 73.3dB. Level: −1.3 to 6dB; EQ. 0 to 10.2dB. DC. 12V DC, 95mA. Power supply, mounting bracket. RK−3T 19" rack adapter. 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H 0.2kg (0.5lbs) approx. 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H 0.6kg (1.2lbs) approx.
