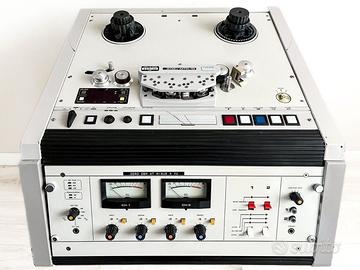

REGISTRATORE OTARI MOD. MTR 10 2-DUE TRACCE 19-38

Descrizione

Description The Otari MTR-10 Series are fully microprocessor controlled 1/4" and 1/2" tape recorder/reproducers. Tape movement is governed by a proven 8080A microprocessor on the recorder's plug in CPU (central processing unit) board. Enhancing the CPU, four erasable, programmable read-only memories (EPROMs) furnish the necessary firmware for controlling the machine's operating parameters and production features. Additionally, Otari's research has led to the development of a proprietary microprocessor which economically raises the level of reliability due to the use of fewer electronic and mechanical parts - fewer linkages, fewer relays, and fewer critical adjustments. Reel motor, capstan and transport control circuits are each contained on individual, modular plug-in circuit boards. Specifications 10-2 10-4 Track system: 2-track, 2-channel, stereo/monaural system Motor: 3 x DC servo Reel size: up to 10.5 inch reel Equalization: AES, NAB, IEC Tape speeds: 7 1⁄2 15 30 ips Wow and flutter: 0.03% (30 ips) Frequency response: 50Hz to 20kHz (30 ips) Signal to Noise Ratio: 79dB Total harmonic distortion: 0.15% Crosstalk: 40dB Dimensions: 482 x 400 x 177.8mm Weight: 70kg Finish: light/medium beige Accessories: optional CB-111, CR-102, CB-109
