Descrizione
scheda video usata funzionamento regolare
NVIDIA Quadro M4000 8GB GDDR5 PCIe Video Card – 818241-001 818867-001 699-5G400-0501-112 699-5G400-0501-111 00FC875 00FC884 YR7H5
The NVIDIA Quadro M4000 is a powerful single-slot professional graphics card built for design, visualization, and content creation workflows. Powered by the Maxwell GPU architecture and equipped with 8GB of GDDR5 memory, it delivers reliable, certified performance across a range of professional applications including CAD, 3D modeling, video post-production, and simulation environments.
Technical Specifications
GPU Architecture: NVIDIA Maxwell
CUDA Cores: 1,664
Memory Capacity: 8GB GDDR5
Memory Interface: 256-bit
Memory Bandwidth: 192 GB/s
Interface: PCI Express 3.0 x16
Power Consumption: 120W

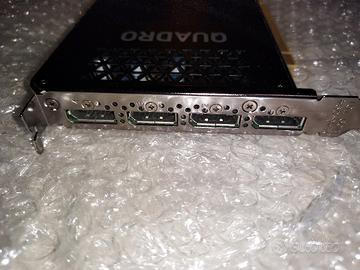

Display Outputs: 4x DisplayPort 1.2
Max Digital Resolution: 4096 x 2160 @ 60Hz
Cooling: Active blower (single-slot)
Form Factor: Full-height, single-slot
API Support: DirectX 12, OpenGL 4.5
NVIDIA Technologies: Mosaic, nView, GPUDirect
Alternate Part Numbers
The following part numbers are all interchangeable with the Quadro M4000 8GB and may appear on OEM, PNY, Dell, HP, or Lenovo branded cards:
HP: 818241-001, 818867-001
NVIDIA/PNY: 699-5G400-0501-112, 699-5G400-0501-111, VCQM4000-PB
Dell: YR7H5
Lenovo: 00FC875, 00FC884
Compatibility & Use Cases
Please note that the following list is not exhaustive. Compatibility depends on the system’s power supply, case clearance, and BIOS support. It's essential to verify compatibility with the system or motherboard manufacturer.
✔ Compatible With:
Dell Precision Workstations:
T3610, T5600, T5810, T7810, T7910, 5820, 7820, 7920
HP Z-Series Workstations:
Z420, Z440, Z620, Z640, Z820, Z840
Lenovo ThinkStation:
P300, P500, P510, P700, P710, P900
ASUS Workstations:
WS X99, WS Z10PE series with proper PSU clearance
Supermicro GPU Workstations:
SYS-7048GR, SYS-5039 series with single-slot compatibility
Custom PC & Render Workstation
