Servo Motor 80SY-M S1 +SG-AS15 servo motor drives

Descrizione

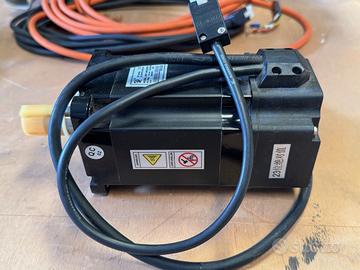

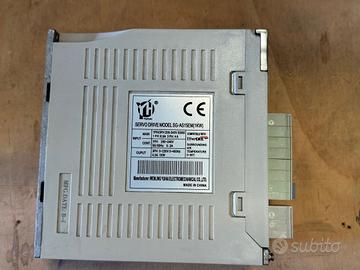

NUOVI Servo Motor - 80SY-M S1 Series Rated Power:1.0 Kw Rated Current:6.0 A Rated Torque:3.19 N.m Max Torque:9.54 N.m Rated speed:3000 rpm Max speed:5000 rpm Middle inertia:2.2*10-4 Kg.m2 High Inertia2.6-10-4 Kg.m2 Input Voltage:AC 220 V Motor weight:3.65 Kg Temperature: 0°C- 55°C Number of pole pairs: 5 Incremental encoder line: 2500 / 5000 PPR Absolute encoder:17bit Absolute class:B Safety Class: IP54 Insulation and voltage resistance: AC1500V,1Minute Insulation resistance: DC500V, 10MΩ above Structure: Self-cooling Vibration: Under 2.5G Altitude: Under 1000m Work system: Continuous Installation Method: Flange installation Fornito con cavi lungh. 5mt. SG-AS15** series servo motor drives Input voltage: three-phase 220VAC (- 15%~+10%), 50/60HZ Control mode: position, speed, torque, bus communication Encoder type: 2500/5000 line incremental photoelectric encoder 17bit/25bit/23bit absolute encoder Communication protocol: RS 485, MODBUS, CAN OPEN, M 2, M 3, Ether CAT Current loop response frequency: 2KHz (Ether Cat version 8KHz), Speed loop response frequency: 1KHz (Ether Cat version 1.5KHz), Position ring response frequency: 800Hz Mis.:160x42x155mm Si vendono insieme. Consegna a mano zona CE o spedizione in tutta Italia
