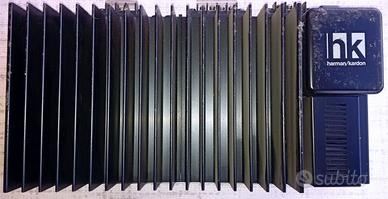

Amplificatore Car Stereo Harman Kardon CA 260 usato pochissimo.
Caratteristiche Tecniche :
Power Output, RMS 60 watts per channel into 4 Ohms,
20 - 20,000Hz
: 90 watts per channel into 2 Ohms,
20 - 20.000Hz
: 180 watts bridged mono into 4 Ohms,
20- 20,000Hz
HCC (High Instantaneous Current . +/-30A
Capability)
THD (4 Ohms/2 Ohms) : No more than 0.1 %10.2%
Negative Feedback : 25dB
Power Bandwidth . 10Hz to 100,000Hz
Frequency Response 10Hz to 100,000Hz + 0, - 3dB
Signal-to-Noise Ratio : 80dB
lnput Sensitivity
Line Level : 0.1V10.5V (switchable)
High Level : 1V
Active Crossover Characteristics
High Pass . 200Hz, 12dB/Octave
Low Pass : 200Hz, 6dB/Octave
Power Supply . DC +13.8V (11 -16V usable),
negative ground
Typical lnput Current Requirements
At Idle . 2.5A
Full Power MUSIC Signal 6 7A (4 Ohms/ch.)
10A (2 Ohms/ch.)
Full Power Sine Wave . 20A (4 Ohms/ch.)
30A (2 Ohms/ch.)
Dimensions (W x H x D) . 15-518" x 3-718'' x 7-1/8"
( 396 x 98 x 180mm)
Weight . 1Olbs. 202. 14.6kgl
