Descrizione

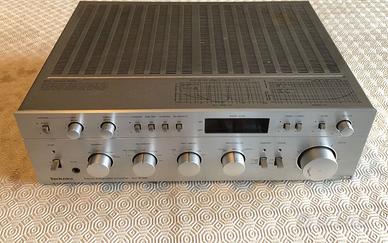

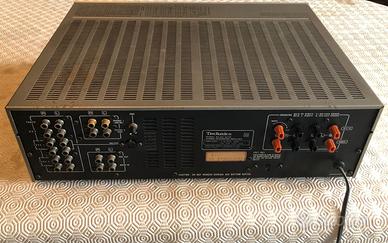

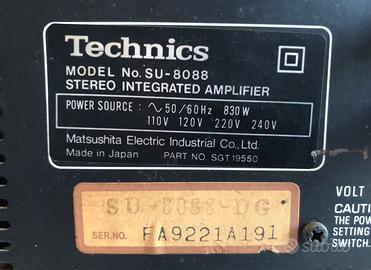

Amplificatore Technics SU-8088, funzionante, estetica visibile in foto, consegna a mano Roma/Eur. General Manufacturer: Technics Model: SU-8088 Type: Integrated amplifier Years of manufacture: 1978 - 1980 Made in: Japan Color: silver (SU-8088), Remote control: no Power consumption: 830 W Dimensions: 450 x 142 x 360 mm (WxHxD) Weight: 15 kg Original price approx.: 1'500 DM Connections Number of inputs: Phono 1 MM: 2.5 mV / 47 kOhm Phono 2 MC: 100 µV / 47 Ohm Tuner, Aux: 200 mV / 47 kOhm 2x Tape (1x Cinch, 1x Cinch/DIN): 200 mV / 47 kOhm Main In: 1 V / 47 kOhm Number of outputs: 2x Tape (1x Cinch, 1x Cinch/DIN): 200 mV (Cinch) / 30 mV (DIN) Pre Out: 1 V Headphones (6.3 mm jack, front) 2 pairs of loudspeakers Technical Data Continuous power (20-20,000 Hz) 8 Ohm: 2x 80 W 4 Ohm: 2x 90 W Dynamic power 8 Ohm: 4 Ohm: Total harmonic distortion: 0.01% (20-20,000 Hz, 8 Ohm) Attenuation factor: 50 (8 Ohm), 25 (4 Ohm) Frequency response: Phono: RIAA ±0.2 dB Tuner, Aux: 20 - 20,000 Hz (+0/0.1 dB) Power bandwidth: 5 - 60,000 Hz (-3 dB) Signal-to-noise ratio: (extraneous voltage at nominal power) Phono MM: 75 dB / 90 dB (IHF-A) Phono MC: 70 / 78 dB (IHF-A) Tuner, Aux: 92 dB / 110 dB (IHF-A) Tone control: Bass: ±7.5 dB at 50 Hz, operating frequency 125 / 500 Hz (selectable). Treble: ±7.5 at 20 kHz, insert frequency 2 / 8 kHz (selectable). Loudness: +7 dB (100 Hz) High Filter: 7 kHz (-6 dB/oct.) Low Filter (Subsonic): 20 Hz (-12 dB/oct.) Mute: -20 dB Direct/Line-Straight: yes Special Features Separable pre-/power amplifier
