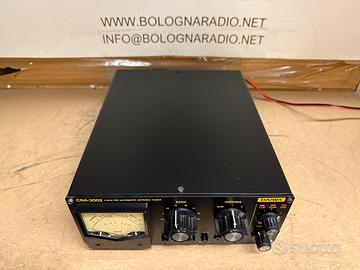

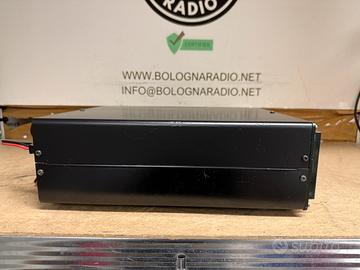

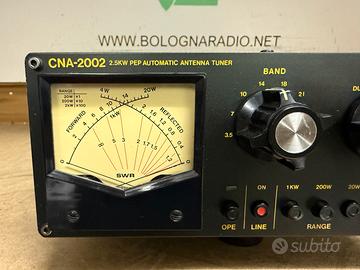

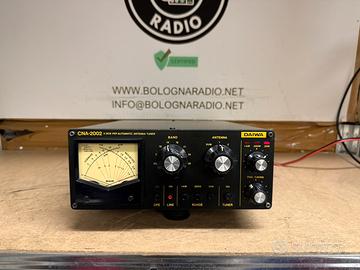

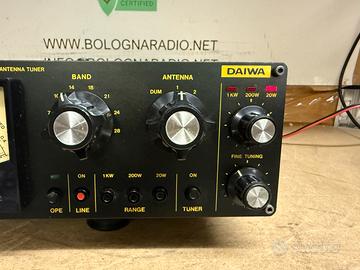

Daiwa CNA-2002 Accordatore d'antenna aut 1kw

Descrizione

Accordatore d'antenna automatico HF Daiwa CNA-2002 , potenza di 1 kW continua e 2,5 kW PEP. Gamma di frequenza 3,5-30 MHz, carico fittizio integrato ben tenuto e perfettamente funzionante SPECIFICATIONS SWR/Pover meter circuitry Frequency coverage Input/Output impedance Pover rating Meter scale ratio, Forward vs Reflected power S. range 6. Meter accuracy SWR measurens vanse 8. SWR detection sensitivity Tuner Circuitry 1. Frequency 3. Input impedance Output impedance 4. Power rating 1.8 - 30 MH2 50 ohm 1 kw CW 5:1 Forward power: 20/200/1000 W Reflected pover: 4/40/200 W $10% (at full scale) 1:1 - infinity 4W 5. Proper input power for auto Time required for tuning 3.5,7,10,14,18,21,24,28 KHz 50 ohm (unbalanced) 25 • 100 ohm (unbalanced) on 3.5 MHz 10 - 250 ohm (unbalnaced) 7 - 28 MHz at VSWR below 1.5:1. CW: 1kw (50% duty) SSTV, RTTY: 500W (10 minutes ) AM: 500W (10 minutes ) 5/10/50 (3 position) Less than 45 sec. Sundry 3. Input/output connector Dimensions Weight No. of output port Dunny load Circuit fuse Capacity of linear amplifier disable terminal Power: consumption SO-259 225W x 90H x 275D m/m 4.3 kg Two 100W, 1 minute rating 0.3 A DC 60V, 0.5 13.8 V DC (11 - 16 V) 0.2 A
