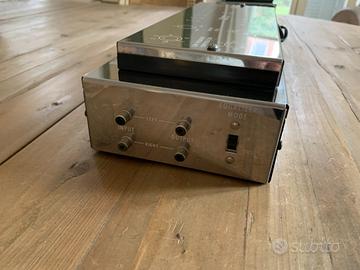

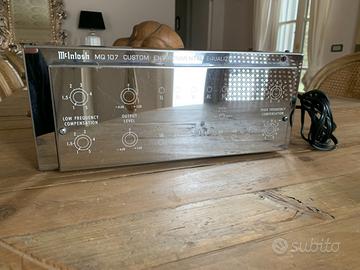

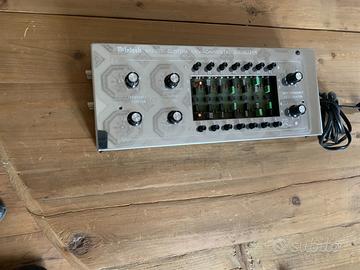

McIntosh MQ107

Descrizione

Equalizzatore originale americano, 110 volt Frequency Response: 20Hz to 20,000Hz +/- 0.5dB Hum and Noise: 90dB (79uV) below 2.5V flat response. 85dB (140uV) below 2.5V worst case. Harmonic and Intermodulation Distortion: less than 0.02% at 2.5V output 20Hz to 20,000Hz Low frequency Compensation: Variable from 0 to +17dB at 20Hz Input Sensitivity: 2.5V into 27k ohms for rated output with controls set for flat response High Frequency Compensation: Variable +/-10dB at 20,000Hz Output Level and Impedance: 2.5V into 10k ohms or more with the output level at zero and all other controls set for flat response. Programmable Filters: 14 sections (7 per channel) each of which can be programmed for standard 1/3 octave center frequencies from 20Hz to 1000Hz. Filter bandwidth is programmable for narrow (approx. 1/3 octave) or wide (approx. 1 octave). Amplitude is continuously adjustable +/- 12dB for narrow and +/-15 dB for wide. A detented control is used to position for flat response. Programming is achieved by means of plug-in capacitors provided with the MQ107. Size: 3-1/2" high, 5-3/4" wide and 14" long Finish: Chrome and black Weight 7 lbs. 9 oz.
