Ricevitore Scanner Yupiteru MVT 7100

Descrizione

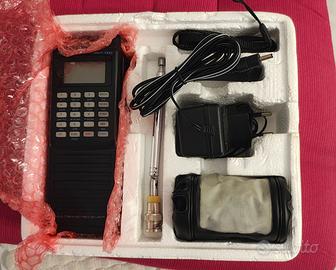

Perfetto Ricevitore analogico all mode modello MVT 7100 , completo di tutto. GENERALType:HF/VHF/UHF receiver/scannerFrequency range:0.53-1650 MHz (Can tune down to 0.1 MHz, but specifications not guaranteed)Tuning steps:50 / 100 Hz 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 KHzFrequency stability:? ppmMode:AM / FM / WFM / SSB / CWChannels / memory management:1000 regular @ 30 channels per second 500 search pass 10 search band 1 priorityPower supply:4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries) or 12 VDC externalCurrent drain / power consumption:10-140 mAAntenna impedance / connector:50 ohm / BNCDimensions (W*H*D):64*155*38 mm (2.52*6.1*1.5")Weight:320 g (11.29 oz)Other features:Attenuator. Backlit display.RECEIVER SECTIONReceiver system:Triple conversion superheterodyne 1st IF: 592.3 / 227.5 MHz (Depending on band) 2nd IF: 45.1 MHz 3rd IF: 455 KHz (FM) - 10.7 MHz (AM/SSB/CW/WFM)Sensitivity:AM (10 dB S/N) 0.53-2 MHz: 10 uV 2-30 MHz: 1.5 uV 30-1000 MHz: 0.5 uV FM (12 dB SINAD) 2-30 MHz: 1.5 uV 30-1000 MHz: 0.5 uV 1000-1300 MHz: 1 uV WFM (12 dB SINAD) 30-1000 MHz: 0.75 uV SSB/CW (10 dB S/N) 2-30 MHz: 1 uV 30-1000 MHz: 0.5 uVSquelch sensitivity:Noise figure:Selectivity:FM 12 KHz (-6 dB) 25 KHz (-40 dB)Image rejection:AF output power / speaker:100 mW at ?% distortion / 8 ohmExternal speaker connector:TS "Minijack" (3.5 mm)
