Descrizione
Cisco Router una sicurezza per tutto. Solo per veri esperti del settore.
Product Description

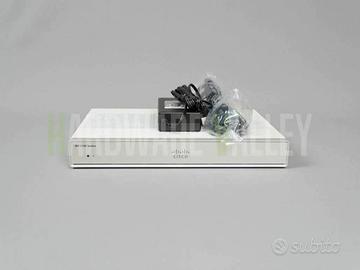

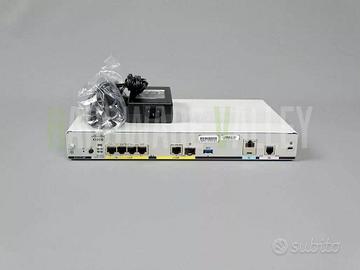

Cisco Integrated Services Router 1117 - router - DSL modem - desktop
Device Type
Router - DSL modem - 4-port switch (integrated)
Enclosure Type
Desktop
Digital Signaling Protocol
ADSL2+, VDSL2+
WAN Ports Qty
2
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Encryption throughput: 250 Mbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol
SNMP, RMON, CLI, TR-069
Features
Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
Compliant Standards
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
32.3 cm x 23 cm x 4.2 cm
Weight
2.59 kg
