Descrizione

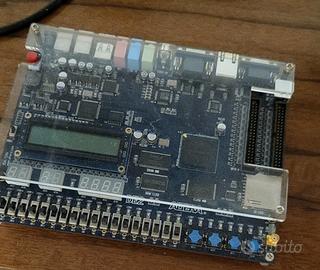

Altera Cyclone II 2C35 FPGA with 35000 LEs Altera Serial Configuration devices (EPCS16) for Cyclone II 2C35 USB Blaster built in on board for programming and user API controlling JTAG Mode and AS Mode are supported 8Mbyte (1M x 4 x 16) SDRAM 512K byte(256K X16) SRAM 4Mbyte Flash Memory (upgradeable to 4Mbyte) SD Card Socket 4 Push-button switches 18 DPDT switches 9 Green User LEDs 18 Red User LEDs 16 x 2 LCD Module 50-MHz oscillator and 27-MHz (from TV decoder) for clock sources 24-bit CD-Quality Audio CODEC with line-in, line-out, and microphone-in jacks VGA DAC (10-bit high-speed triple DACs) with VGA out connector TV Decoder (NTSC/PAL) and TV in connector 10/100 Ethernet Controller with socket. USB Host/Slave Controller with USB type A and type B connectors. RS-232 Transceiver and 9-pin connector PS/2 mouse/keyboard connector IrDA transceiver Two 40-pin Expansion Headers with diode protection DE2 Lab CD-ROM which contains many examples with source code to exercise the boards, including: SDRAM and Flash Controller, CD-Quality Music Player, VGA and TV Labs, SD Card reader, RS-232/PS-2 Communication Labs, NIOSII, and Control Panel API
