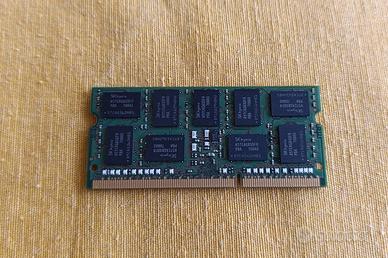

SoDimm 8G Kingston KVR16LSE11/8HD 8GB 2Rx8

Descrizione

Modulo Sodimm Kingston da 8GB DDR3-12800 ECC Ecco la scheda del produttore ValueRAM's 1G x 72-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, ECC, low voltage, memory module, based on eighteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V and backwards compatible at 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: FEATURES • JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply • VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) • 800MHz fCK for 1600Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 5, 6, 7, 8, 9, 10, 11 • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • With Integrated Onboard Temperature Sensor EEPROM • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.18” (30mm), double sided component SPECIFICATIONS Row Cycle Time (tRCmin) 48.125ns (min.) Refresh to Active/Refresh 260ns (min.) Command Time (tRFCmin) Row Active Time (tRASmin) 35ns (min.) Maximum Operating Power TBD W Operating Temperature 0°C to 85° C Storage Temperature -55° C to +100° C Ho disponibilità totale di 4 moduli da 8G, il prezzo è per singolo modulo ATTENZIONE: Sono moduli ECC (la stessa RAM usata sui sistemi Server/Workstation) quindi è necessario verificare attentamente che siano compatibili con il proprio sistema.
