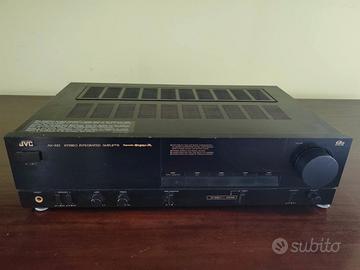

Amplificatore JVC AX 333

Descrizione

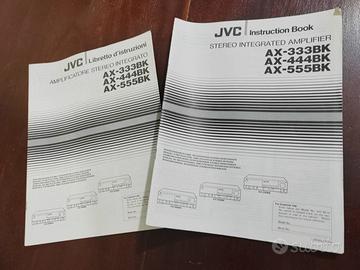

Causa precedente inconveniente di natura tecnica, ripropongo storico ampli della JVC. L'AX 333 eroga 55 Watt per canale su 8 Ohm oppure 60 Watt su 4 Ohm. Acquistato nel 1991, testato in tutte le sue funzioni, funzionante al 100% Manuali originali Video disponibili Solo contatti tramite wzzp 368984017 Spedizione a carico dell'acquirente Pagamento con bonifico bancario Data General Manufacturer: JVC Model: AX-333 BK Type: Integrated amplifier Years of manufacture: 1988 - 1989 Made in: Japan Color: Black Power consumption: 170 W Dimensions: 435 x 125 x 306 mm (WxHxD) Weight: 6.2 kg Original price approx.: 599 DM Connections: Number of inputs: Phono MM: 2.5 mV, 47 kOhm, 100 mV max. Tuner: 200 mV, 43 kOhm Aux: 200 mV, 43 kOhm CD: 200 mV, 43 kOhm Tape Play 1, 2: 200 mV, 43 kOhm Number of outputs: Tape Rec 1, 2: 150 mV, 2 kOhm Headphones: 8 - 16 Ohm 2 pairs of speakers Technical Data Continuous power (at distortion factor) 8 Ohm: 2x 55 W RMS, 20 - 20'000 Hz, < 0,007 % 4 Ohm: 2x 60 W DIN Dynamic power 8 Ohm: 4 Ohm: Total harmonic distortion: 0.007 % at rated power Attenuation factor: 35 at 8 Ohm Frequency response: Phono: 20 - 20'000 Hz, ± 1 dB High Level: 5 - 80'000 Hz Signal to noise ratio: Phono MM: 71 dB High Level: 100 dB Tone control: Bass: ± 8 dB at 100 Hz Treble: ± 8 dB at 10 kHz Loudness: + 6 dB at 100 Hz High Filter: Low Filter (Subsonic): Muting: CD Direct: yes
