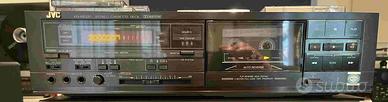

JVC KD-VR320

Descrizione

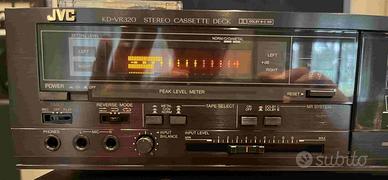

Vendo piastra a cassette con Auto reverse della JVC Mod . KD-VR320 con Dolby B e C , perfettamente funzionante ed in ottime condizioni. Posso spedire Manufacturer: JVC Model: KD-VR 320 Type: Stereo Auto-Reverse Cassette Deck Years of manufacture: 1985 - 1986 Made in: Japan Color: Silver or black Dimensions (WxHxD): 435 x 110 x 282 mm Weight: 4.3 kg Original price approx.: DM 549,00 Technical data: Sound heads: Flip Reverse Head System / 2 heads: METAPERM head (recording/playback) / double slit ferrite head (erasing) Motors: 2-Motor Full Logic Tape Transport Winding speed: approx. 95 sec. (C 60) Synchronisation fluctuation: 0.05 % (WRMS) / 0.16 % (DIN 45 500) Track system: 4-track, 2-channel Tape speed: 4.8 cm/sec. Tape types: I, II, IV Frequency response (-20dB recording): Type I - Normal: 20 - 15,000 Hz (DIN 45 500), 30 - 14,000 Hz (+/- 3dB). Type II - Chrome: 20 - 16,000 Hz (DIN 45 500), 30 - 15,000 Hz (+/- 3dB) Type IV - Metal: 20 - 16.000 Hz (DIN 45 500), 30 - 15.000 Hz (+/- 3dB) Distortion factor: K3: 0.5 %, THD: 1.0 % (metal band, 1 kHz 0 VU) Signal-to-noise ratio: 58dB (DIN 45 500, metal band). Noise-to-noise ratio is improved by 15dB at 500 Hz, by max. 20dB at 1 kHz-10 kHz and by 4dB MOL at 10 kHz with Dolby C NR Crosstalk attenuation: 55 dB (1 kHz) Channel separation: 40 dB (1 kHz) Power supply: Mains 240/220/120 V, 50/60 Hz. Power consumption: 17 W Auto reverse: yes Title search: yes Dolby: B, C Special features: Auto-Reverse 2 x microphone inputs Timer Rec/Play Record Mute Full Logic Transport Control Music Scan Blank Search Index Scan
