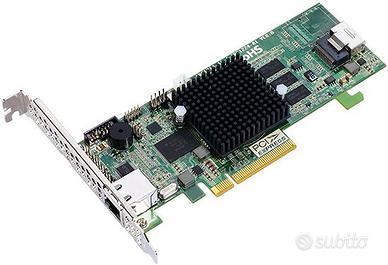

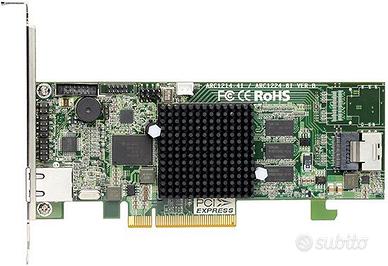

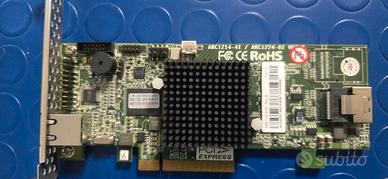

RAID Controller ARECA ARC-1214-4i 4x6Gbs SATA/SAS

Descrizione

ARECA ARC-1214-4i 6 Gb/s SAS RAID Controllers ARC-1214 internal PCIe 2.0 host RAID controllers are a cost-effective solutions for connecting up to 4 6Gb/s SAS peripheral devices. The RAID controllers are based on the same RAID kernel of field-proven internal/external RAID controller and same device driver architecture with widely used 3Gb/s and 6Gb/s SAS/SATA RAID controller. Applications that benefit most features from these controllers include NAS, server RAID solutions, web servers, near-line backup, security systems and streaming applications. ARC-1214-4I support directly attached 4 internal 6Gb/s SAS ports via 1 SFF-8087 connector. ✵ Supports up to (4) 6Gb/s SAS,SATA or SSD drives ✵ Support up to 1GB DDR3-933 cache ✵ Support read/write cache allocation by policy ✵ Support optional battery backup module (BBM) ✵ Self-encrypting drive management ✵ SES2, SMP and SGPIO enclosure management ✵ Redundant flash image for adapter availability ✵ Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100) ✵ Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk ✵ Broad operating support including Windows, Linux (open source),FreeBSD (open source), Soaris (open source), Mac and VMware
